Description

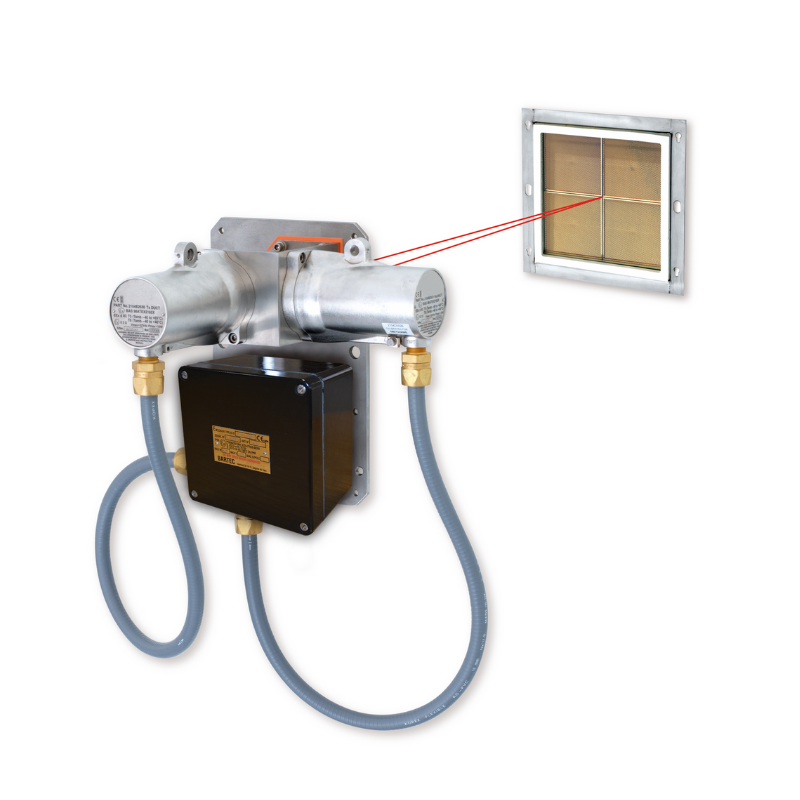

Searchline Excel Cross Duct Infrared Gas Detector Searchline Excel Cross Duct delivers the highest speed of response at low alarm set points over a wide temperature range. Features & Benefits

  • Fast speed of response provides earliest warning
  • High sensitivity allows low alarm set points
  • Works in inert atmospheres

Quick Specs

  • Response speed: T90 less than 1 second
  • Detection Range: 0 to 100% LEL
  • Operating temperature: -40 degrees to +50 degrees Celsius (-40 degrees to 122 degrees Fahrenheit) ambient

 Based on the proven open path design, Searchline Excel Cross-Duct was developed in response to the unique requirements for monitoring in HVAC ducting and Turbine Enclosures. Searchline Excel Cross-Duct delivers the highest speed of response at low alarm set points over a wide temperature range. With continuous improvement and the highest quality manufacturing and control processes, Honeywell Analytics Searchline Excel Open Path flammable gas detector provides best in class gas detection. Searchline Excel is often the chosen primary flammable gas detector in conjunction with Searchpoint Optima Plus as complimenting flammable point detection. Cross duct flammable gas detectors compliment other system gas protectors such as toxic gas detection, providing a fast and effective protection to gas ingress into ventilation ducts.

Additional information

Product Name

Short Range, UL, Source (Methane), Short Range, ATEX, Source (Methane), Long Range, ATEX, Source (Methane)
